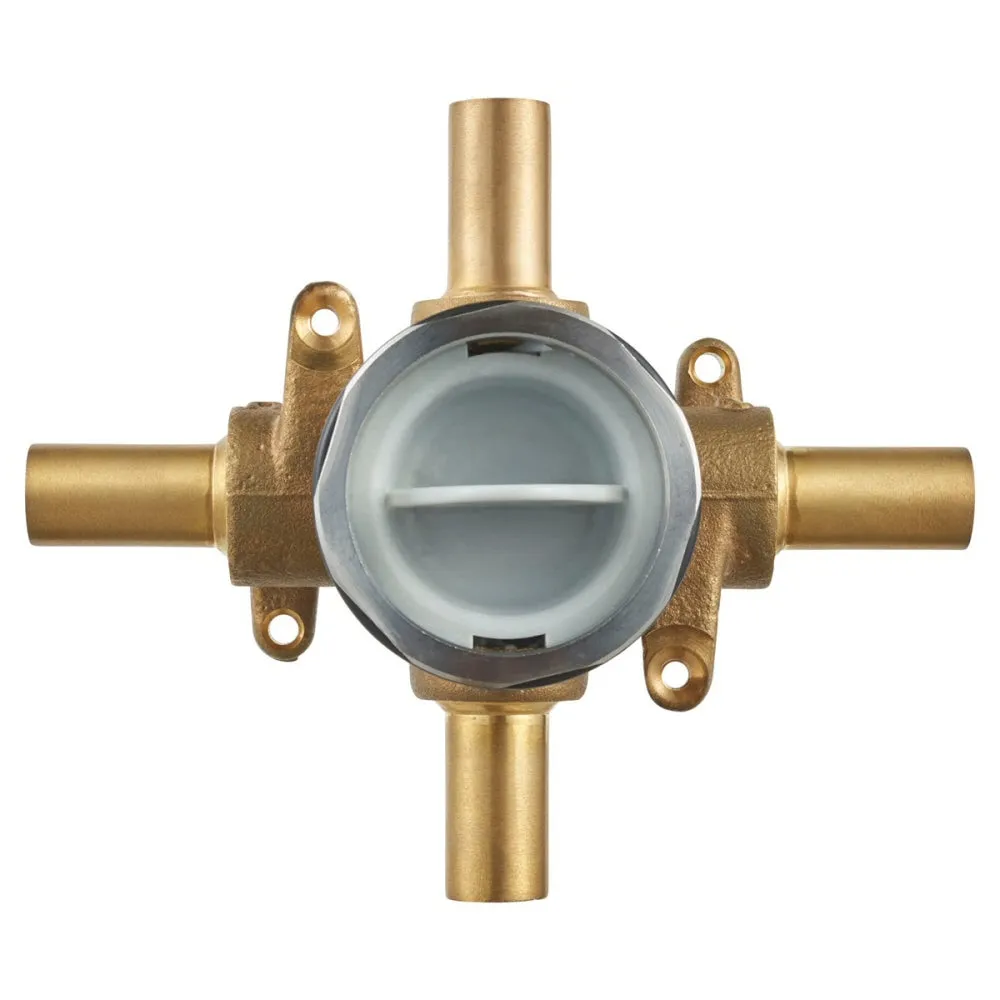

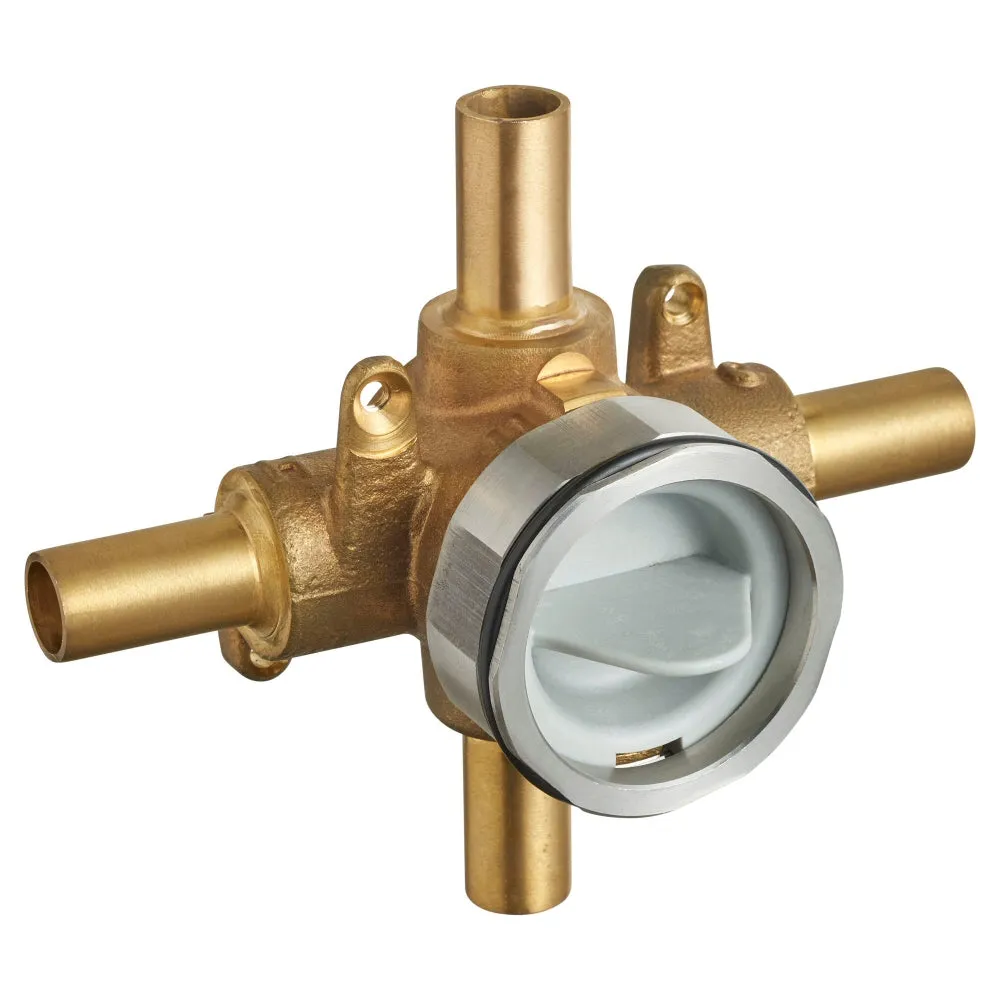

Name: American Standard - RU102 - Flash Pressure Balance Rough-in Valve With Stub-Outs For Press-Fit Connections
SKU: 87429

Flash Shower Rough-in Valve with Stub-Outs

RU102

Designed for fast and efficient installation, the Flash Shower Rough-in Valve provides flexibility for every situation. The Rough-in Valve features a flat back and compact body to ensure a secure and simplified install process that can accommodate smaller spaces. Our exclusive stub-out connections allow you to connect press-connect fittings directly to the valve without additional solder or piping. Equipped with a test cap, it allows you to quickly test or flush lines with ease. Stainless steel fixation ring, with sure-grip flats, keeps test cap and cartridge in place without screws. Cartridge sold separately.

Choice of Connections: Fast and easy installation without adaptors reducing leak points. Available connections include
Universal (male thread/female sweat), PEX Crimp, PEX Cold expansion, CPVC, and Stub-outs.
Cast Brass Valve Body: Durable. Ideal material for prolonged contact with water.
Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation.
Test Cap: Allows valve body to be tested and flushed without the presence of the valve cartridge. Can be tested using test cap with air (200 psi) or water (300 psi).
Stainless Steel Retaining Ring with Flats: Secures test cap/cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge.
Back-to-Back Capability: Hot and cold can be reversed quickly and easily.

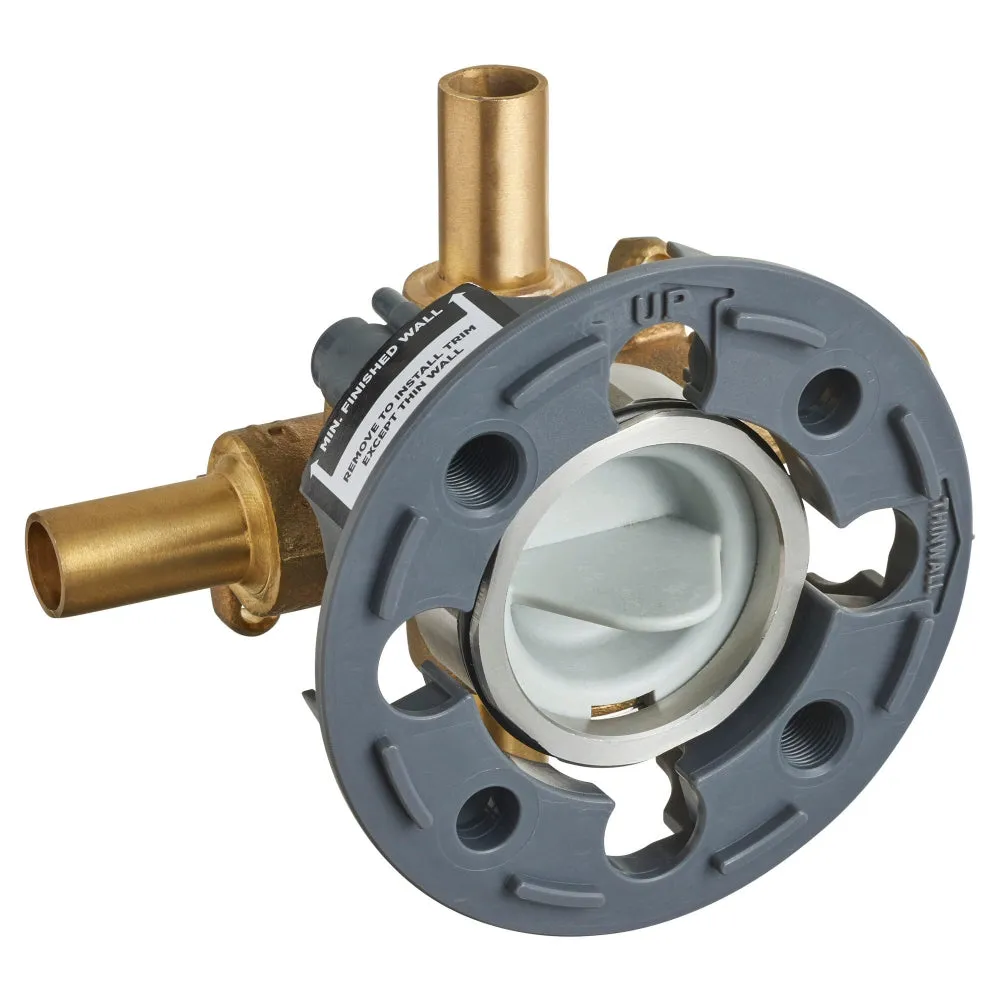

Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.
Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.
Test Cap: Allows valve body to be tested and flushed without the presence of the valve cartridge. Can be tested using test cap with air (200 psi) or water (300 psi).
Stainless Steel Retaining Ring with Flats: Secures test cap/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge.
Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
Stub-out Connections: Specially designed connections to work with press-connect fittings for fast and easy installation
Cast Brass Valve Body: Durable. Ideal material for prolonged contact with water.
Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.
Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.
Cartridge Ships with Trim
Height: 6.313, Length: 5.688, Width: 4.25
